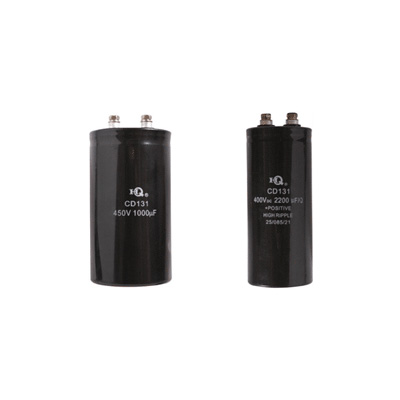

CD131 Series Aluminum Electrolytic Capacitors

Features: Large capacitance, high ripple current loaded, used in various ripple circuits and charge-discharge circuits as stored energy of electric welder magnetizing apparatus, etc.

Technical data:

Item	Characteristics
Temperature range	-40～+85℃	-25～+85℃
Rated voltage range	25～100V	160～500V
Capacitance range	2200～100000μF	220～22000μF
Capacitance tolerance	-10～+50%	-10～+30%
Leakage current	I≤0.03CR UR+20(μA)
Load life	1000 Hours at 85℃

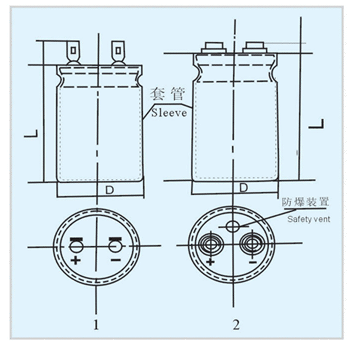

Dimensions:

D±1.5	50			65		80		90
L±3.0	80	100	120	120	150	120	150	150	190

Nomminal capacitance、rated voltage and case size table:

	25	32	50	63	100	160	250
1500							50x80
2200						50x120	50x120
3300						65x120	65x120
4700				50x80	65x150	65x150	65x150
6800		50x100	50x80	50x100	65x150	80x150	80x150
10000	50x80	50x120	50x100	65x120	65x150	80x150
15000	50x80	50x120	65x120	65x150	65x150	80x150
22000	50x100	50x120	65x120	65x150	65x150	80x150
33000	50x100	50x120	65x150	80x150	65x150
47000	50x120	65x150	80x150

	300	350	400	450	500
220					50x80
330				50x80	50x80
470			50x80	50x120	65x120
680	50x80	50x80	50x120	65x120	65x120
1000	50x120	50x120	65x120	65x120	65x120
1500	65x120	65x120	65x120	65x120	80x150
2200	65x120	65x120	65x120	65x150	80x150
3300	65x150	65x150	80x120	80x150	90x150
4700	80x150	80x150	80x150	90x150
8200				90x190
