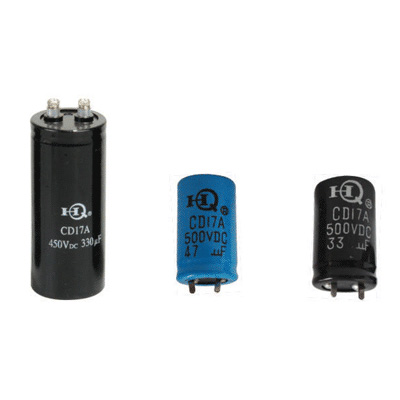

CD17A Series Aluminum Electrolytic Capacitor

Features: Solder tags and screw terminals, suit for use in DC or pulse electronic circuits in electronic equipments such as welding equipments for energy stroging.

Technical data:

Item	Characteristics
Temperature range	-25～+85℃
Rated voltage range	160～550V
Capacitance range	33～22000μF
Capacitance tolerance	-10～+50%
Leakage current	I≤0.02CR UR (μA)

Dimensions:

D±0.5	21	34	42	50	65		80	90
L±3.0	37	80	80	120	120	150	150	150

Nomminal capacitance、rated voltage and case size table:

	160	200	300	350	450	550
33					21x37	21x37
47					21x37	21x37
100					34x80	34x80
150					42x80	42x80
220					50x120	50x120
330					50x120	50x120
470					65x120	65x120
680				50x120	65x120	65x150
1000		50x100	50x120	65x120	65x120	65x150
1500	50x120	50x120	50x120	65x120	65x120	65x150
2200	65x120	50x120	50x120	65x120	80x150	80x150
3300	65x120	50x120	65x120	80x150	80x150	80x150
4700	80x150	65x120	65x150	80x150	80x150	80x150
6800	80x150	65x150	80x150	80x150	90x150
10000	80x150	80x150
22000	80x150
